Automatic Coulometric Karl Fischer Titration by Drying Furnace Method

Introduction:

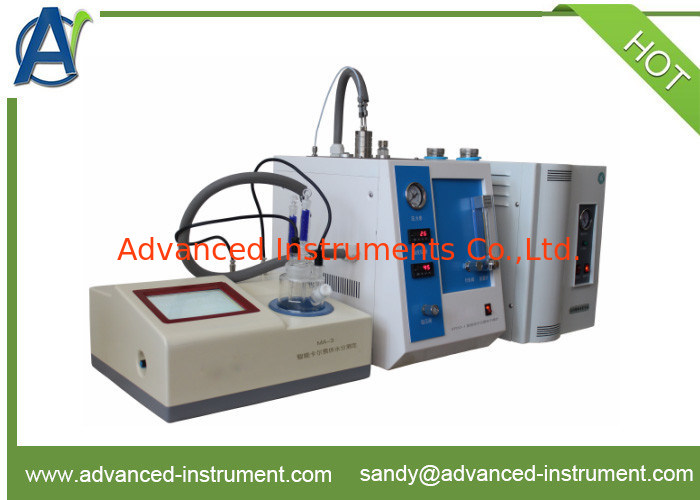

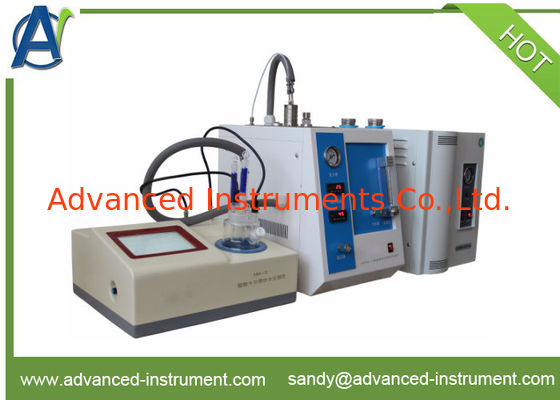

MA-3 Intelligent Karl Fischer Titrator(Left,automatically deduct trace moisture in carrier gas),Karl fischer drying oven(Middle) and high purity air generator(Right,it can be replaced with Nitrogen gas cylinder).

Features:

1. Sample heating positions are uniformly distributed along the circumference,which makes the temperature gradient of different position smaller and improve stability of analysis result.

2. Sample transferring pipe has heating function,so it can avoid condensing of steam during transferring after heated.

3. Sampling pipe has backblow function,and it can prevent cross contamination.

4. Protection for over temperature,low temperature and power failure.

Sampling interface can be changed at random,and it can connect with all kinds of KF titrators in the world.

.


Specifications:

1. Temperature controlling range of sample heating:ambient~300℃, incremental adjustment 0.1℃.

2. Temperature controlling range of pipeline:ambient~150℃, incremental adjustment 0.1℃

3. Calibrated flow rate:0-300ml/min,continuous adjusting

4. Temperature resolution:0.1℃

5. Volume of sample bottle:20ml

6. Working units:4
