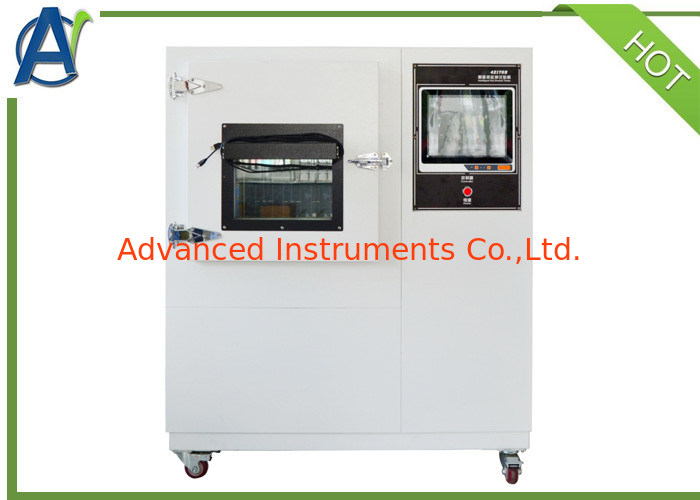

High Temperature Elongation Test Equipment with Hot Set Aging Chamber

Product Description:
This Hot Set Aging Chamber adopts micro camera + industrial integrated computer + self-developed software and other main components. It can automatically measure the elongation of the sample in high temperature environment.It is mainly used for natural ventilation thermal aging test in wire, cable, rubber and plastic industries.
Temperature and time can be set and controlled by computer, easy to operate. The front door of the Hot Set Aging Test Chamber is equipped with right vacuum glass observation window, material of chamber is SUS304 stainless steel. Besides, the shell is made of high quality steel plate, and the surface is sprayed with plastic. The door seal is made of heat-resistant silicone rubber, which is hygienic and safe.

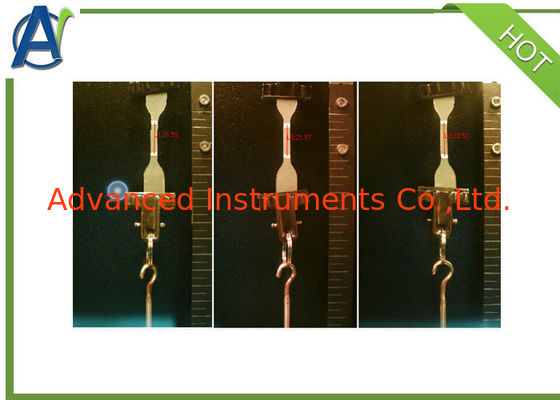

The specimen suspension device in the instrument is matched with the instrument, which can hang three samples at the same time. The upper and lower clamps of the device can be quickly taken and installed, which is convenient to replace the sample and shorten the opening time.

Standard:
GB/T 2951-2008

Technical Parameters:

1. Temperature Range: (normal temperature + 30) ~ 300 ºC
2. Temperature Fluctuation: ≤± 0.5 ºC
3. Temperature Deviation: ≤± 2 ºC
4. Heating Time: it takes about 50mins from room temperature to 300ºC, with observation window
5. Heating Plate: 3kw, electric heating
6. Over temperature protection function
7. Ventilation Rate: 8-20 times/hour
8. Configuration Weight: each one of 1g, 5g, 10g, 50g, 200g; two of 2g, 20g, 100g. 11 weights in a box, 3 boxes in total.
9. Working units: 3 pieces
10. Maximum Distance Between Upper and Lower Clamps: 130mm
11. Elongation Accuracy: 1%
12. Industrial Integrated Machine: 12.1 inch, I5,8G
13. HD Internet Micro Camera: 2.8mm
14. Steel Rule: 150cm
15. Inner Dimensions: 450*450*500mm3
16. Material of Inner: SUS304 Stainless Steel; Material of Outer: Anti-static spraying (white)
17. Thermal Insulation Material: The five sides are filled with 100 mm thick glass fiber cotton, and the bottom is filled with 60 mm thick glassfiber cotton.
