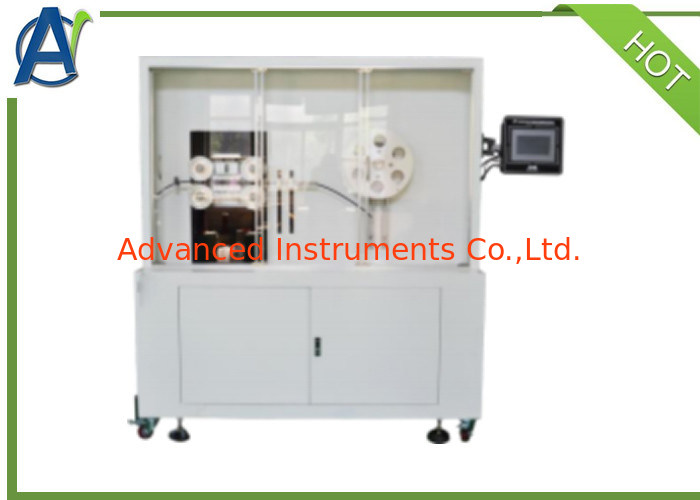

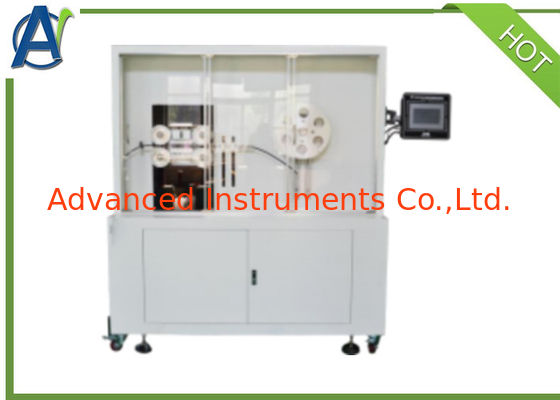

Product description:
Carbon fiber composite core winding test equipment is suitable for the winding property test of fiber reinforced polymer matrix composite core for overhead electrical conductors cables, fiber reinforced resin matrix composite core soft type aluminum wires.
It is composed by a chassis, the mechanical transmission part,the control part, the winding wheel, a protective cover, assembly of the damping device, the guide tubes and other components.
Standard:
• GB/T 29324.32-2012
Technical parameters:
• Winding speed: 3 r/min
• Winding wheel diameter: φ275 ~ 605mm, 13 sizes in total
• Upper and down adjusting speed of traction sheave: 150mm / min;
• Specimen range: φ 5 ~ 11mm;
• Removable acrylic shields, good transparency, high strength
Specifications:
• Overall dimensions: 1600×730× 1810mm (L×W× H)
• Power supply: 220V/50HZ
