100KV Insulating Liquid Test Transformer Oil Test Kit

Cantidad de orden mínima:	1 set
Precio:	Negociable
Detalles de empaquetado:	Caja de madera contrachapada
Tiempo de entrega:	15 días
Condiciones de pago:	Unión occidental, T/T, L/C
Capacidad de la fuente:	100 conjuntos por mes

Contactar ahora

Descripción detallada del producto

Estándar de prueba:	IEC60156/IS6792/BS5874/ASTM D1866/ASTM D877	Salida de voltaje:	CA 0V~100kv
Mostrar:	Lcd	Fuente de alimentación:	El AC220V±10%, 50Hz/60Hz
palabra clave:	Kit de prueba de aceite de transformador	Garantía:	1 año
Tamaño:	620 mm430mm330mm	Peso:	41 kg

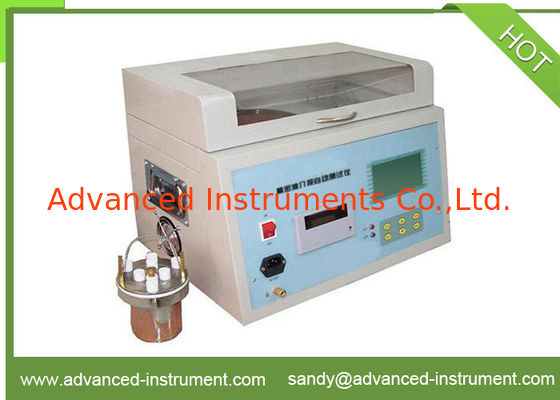

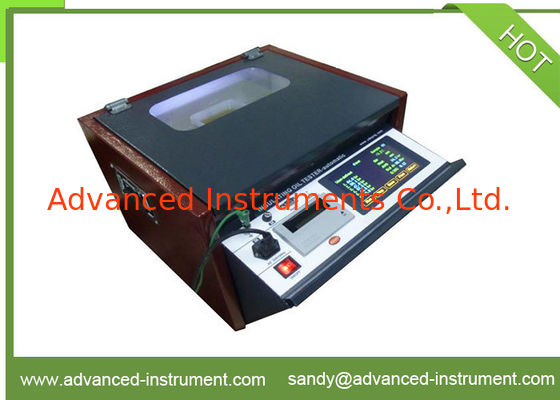

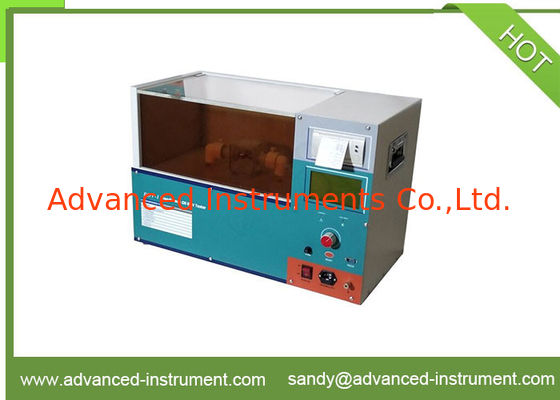

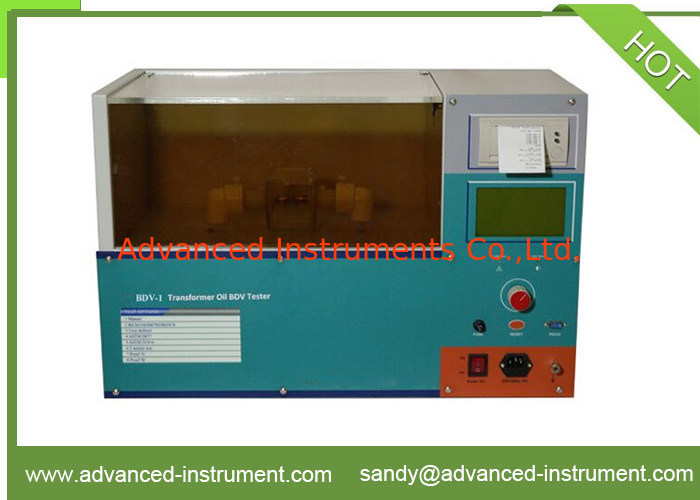

100KV Transformer Oil Test Kit

Name: 100KV Insulating Liquid Test Transformer Oil Test Kit
Brand: Advanced Instruments Co.,Ltd
SKU: BDV-1
Availability: InStock

I. Introduction:

BDV-1 Transformer Oil Test Kit is designed according to the national standard IEC156 Insulation Oil Dielectric Strength Test Method;

This transformer oil tester has large LCD display, micro-printer and can store 100 groups data;

This oil test kit is multi-functional, stable, and easy for operation;

II. Functions:

Breakdown test of user-defined;
Proof test;
IEC60156/IS6792/BS5874 test;
ASTM D1816 standard test;
ASTM D877 standard test;
5 minutes standard test;
Manual test;
Calibration interface for customers;
This transformer oil tester can upload data to PC and making word report automatically;
Result can be printed by insulation oil tester;

III.Specifications:

Output voltage	AC 0V~100KV
Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
Max test times setting for user-defined mode	9
Stir time setting for user-defined mode	0~999s
Waiting time setting for user-defined mode	0~999s
Test error	3%RDG+0.3%FS
Display	256´128 LCD
Maximum storage capacity	100 groups of test data
Power supply	AC220V±10%, 50Hz/60Hz
Working environment	0-50℃, ≤80%RH
Size	620 mm430mm330mm
Weight	41kg
