Characteristic

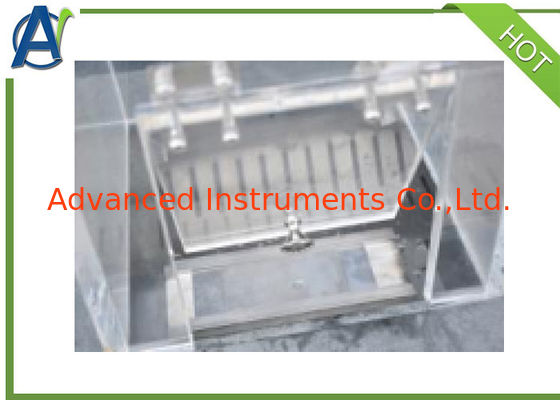

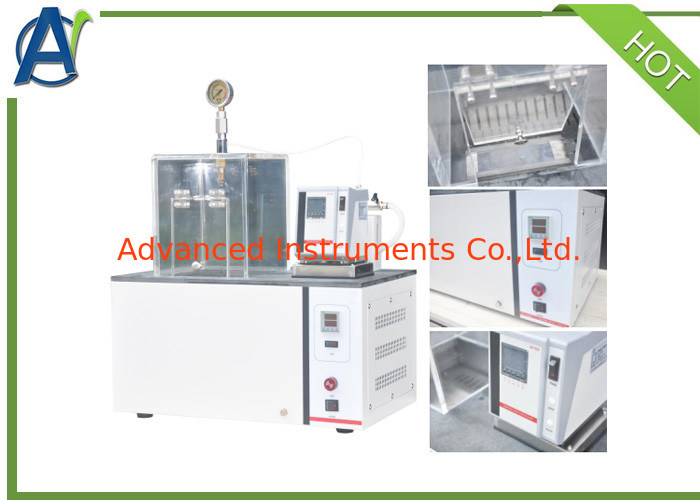

◆Plexiglass spray box for easy observation;
◆Precision pressure gauge shows spray pressure;
◆Stainless steel plate meets standard requirements: 152.4×50.75×6.35mm;
◆Stainless steel mold meets standard requirements: 203.2×76.2×11.11mm;
◆Stainless steel nozzle, nozzle diameter: Φ3.18mm;
◆The front end of the pressure gauge has a bypass valve to adjust the pressure: 40psi±1psi;

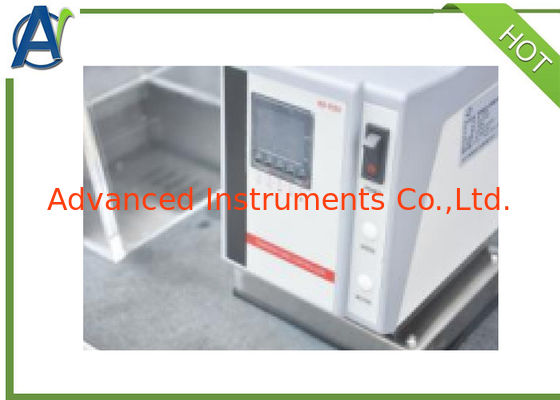

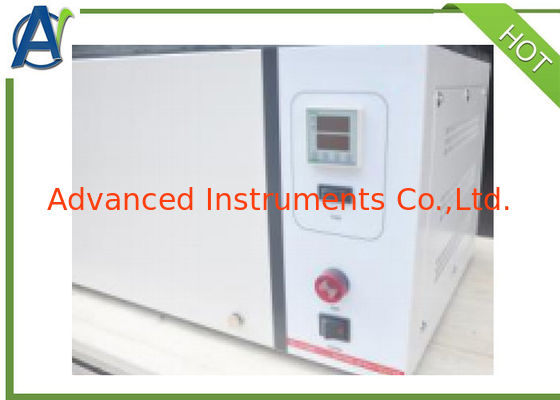

◆Microcomputer temperature controller, digital display, accuracy ±0.2℃, PT100 sensor;
◆The magnetic pump circulates the cooling medium, and the circulation pipe is equipped with an insulation sleeve;
◆Digital display timer to control spray time.
Technical specifications
1. Applicable standard:ASTM D4049,SH/T0643
2. Heating method of Water Spray Resistance Tester:electrical tube
3. Timing method:digital timer
4. Temperature control method:digital PID controller
5. Working temperature:38±0.2℃
6. Working hydraulic pressure of Water Spray Resistance Instrument:40psi±1psi
7. Hydraulic pressure control:adjusted by bypass valve
8. Spray method:precise nozzle
9. Total power:2.5KW
10. Power supply:AC220V/50Hz
11. Weight:43KG
II.Accessories list
| No. |
Name |
Specifications |
Quantity |
Unit |
| 1 |
Main Unit Water Spay Resistance Tester |
—— |
1 |
Set |
| 2 |
Stainless steel sheet plate |
—— |
1 |
PC |
| 3 |
Spray shield |
—— |
1 |
PC |
| 4 |
Mold |
|
1 |
Set |
| 5 |
Fuse |
20A |
4 |
PC |
| 6 |
Thermometer |
0~50℃/0.1℃ |
1 |
PC |
| 7 |
Scraper |
—— |
1 |
PC |
