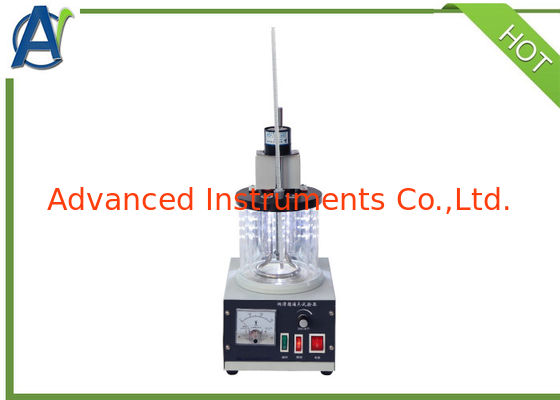

Automatic Dropping Point Test Set for Lubricating Grease
Introduction
The Dropping Point Tester Equipment is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
Main Features:
◆This test equipment adopts metal bath heating, rapid heating and simple operation
◆It can automatically detect the dropping point of the sample, no special person is required to monitor the experiment process, and automatically notify after the experiment is over
◆The high-precision sensor can capture the dripping process of grease and get the experimental results in time
◆This Automatic dropping point test equipment uses touch screen display, clear reading and easy operation
◆Using high-precision PT100 temperature measurement sensor, the measurement accuracy is high, which is ±0.1°C
◆The dropping point test equipment is equipped with over-temperature limit function
Technical specifications
| Applicable standard |
GB/T 4929,ASTM D566 |
| Temperature controlling range |
25℃～300℃ |
| Temperature controlling accuracy |
0.1℃ |
| Detection method |
Automatic test and display result |
| Display method |
LCD Touch screen |
| Cooling method |
Forced air cooling |
| Heating method |
Heating tube |
| Power supply |
AC220V±10% 50HZ |
