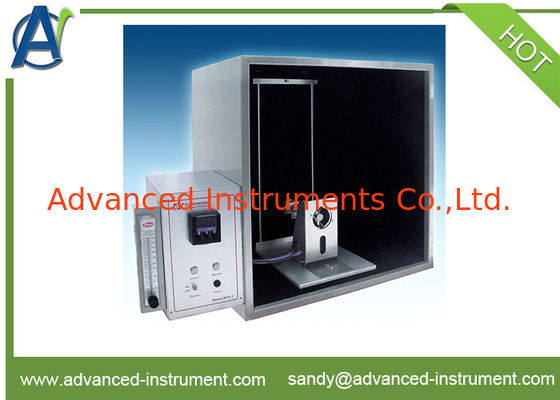

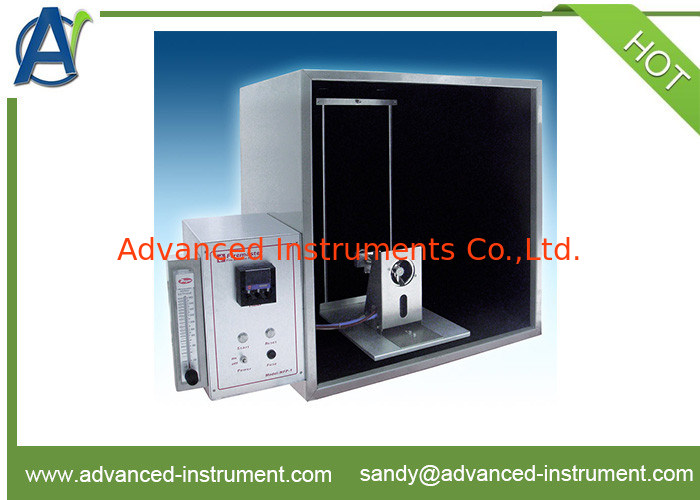

NFPA 701 Part 1 Small Scale Drapery Flammability Test Equipment
Introduction
NFPA 701 is Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. According to different fabric weight, divided into 1 methods and methods 2.
Features
1.Specified apparatus for all hanging decorative materials weighing less than 21 oz/yd² (700 g/m²).
2.Manufactured with specified ½" marinite panels framed in stainless steel.
3.Meker Burner with Spark ignition.
4.Gas system include the flow meter, pressure meter and pressure reducing valve.
5.Automatically shut the system down completely after the 45-second flame application.
Installation Requirements
1. Electric:110 to 230 V, 50HZ
2. Ambient Temperature: Operating 21°C
3. Gas: Methane
4. Dimension:829mm (W) x 520mm x (H) x 460mm (D)
5. Weight:61KG
