30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs

30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs

    • 30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs
    • 30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs
    • 30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs
    • 30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs
    • 30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs

    Datos del producto:

    Lugar de origen: PORCELANA
    Nombre de la marca: AI
    Certificación: ISO
    Número de modelo: El IGB

    Pago y Envío Términos:

    Cantidad de orden mínima: 1 set
    Precio: Negociable
    Detalles de empaquetado: Caja de madera contrachapada
    Tiempo de entrega: 15 días
    Condiciones de pago: T/T, Western Union, L/C
    Capacidad de la fuente: 100 conjuntos por mes
    Contactar ahora
    Descripción detallada del producto
    Fuente de alimentación: 0-220V, 50HZ Mostrar: Digital
    Rango de medición: 0~30KV Capacidad: 3KVA
    Unidades de prueba: 6 pcs Garantía: 1 año

    Insulating Boots and Gloves Withstand Voltage Test Bench

    I. Introduction:

    This insulating gloves and boots test bench is used to test leakage current,insulation aging,power frequency of insulating gloves and boots.It can test 3 pairs for each time and to read leakage current of each pair in order to find which one is unqualified.There are trundles in the bottom which make more convenience for moving.





    II.Main Features

    1. Input voltage:AC220V 50Hz
    2. Output voltage:0~30KV
    3. Capacity:3kVA
    4. Test units:6 units each time
    5. Test data:Display and print voltage data and leakage current data of each unit
    6. Overcurrent protection:Overvoltage protection；User-defined time setting,display voltage data and leakage current data
    7. Accuracy:Voltage ±2%(±3 digits) Current±2%(±3 digits)
    8. Weight:control unit 12kg; test bench 60kg







    III. Package List

    1 Test car 1 Set
    2 Test bench 1 Set
    3 HV test transformer 1 Set
    4 Test cable 1 Set
    5 Manual book 1 Copy

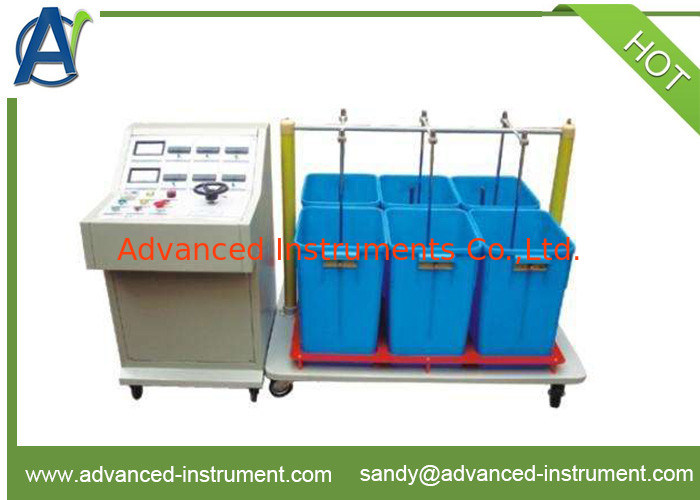

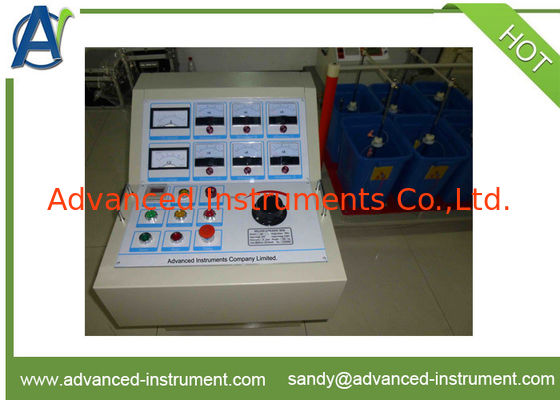

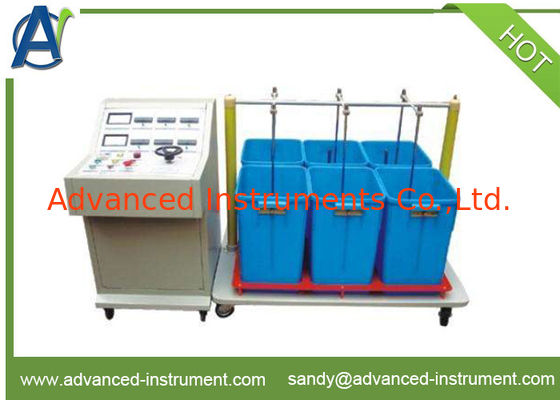

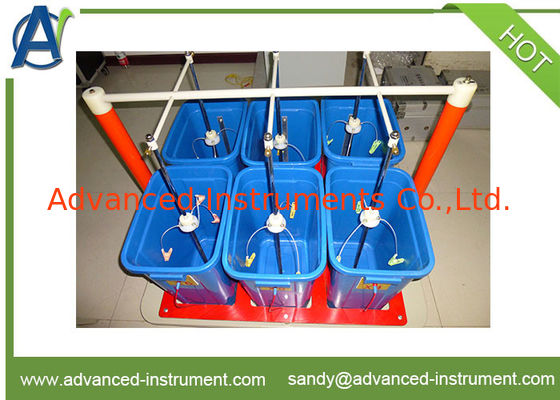

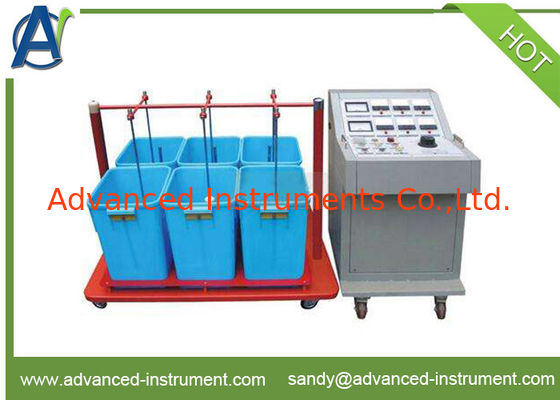

    Photo of Insulating Boots and Gloves Withstand Voltage Test Bench30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs30KV Insulating Boots and Gloves Withstand Voltage Test Bench For 3 Pairs
