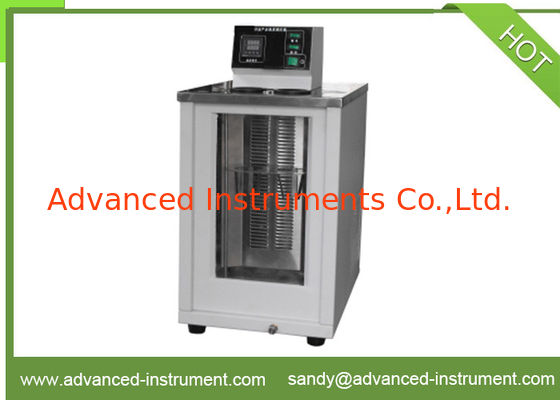

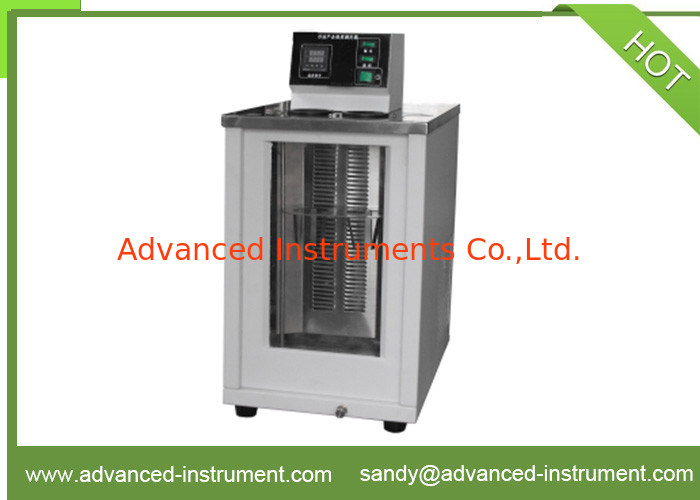

ASTM D1298 Density and Specific Gravity Testing Equipment
Introduction
This density meter is suitable to determine density of easy flowing liquid,and if working with suitable constant bath,it can also be used to measure viscous liquid and opaque liquid under condition of higher temperature than room temperature.
I.Main features
1.Use glass heating bath,easy to observe
2.Integrated structure is easy to operate
3.Insulated glass tank,inner tank is Φ300×300mm
4.Two samples can be analyzed simultaneously,which is convenient to do parallel test
5.Big power solid relay controls output,no voltage leakage
6.There is stirrer on electrical heating bath
7.Stainless steel heater
8.Temperature controller displays heating status
9.It’s made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.
10.Safety device can prevent over-heating or low liquid level
11.Contact control box is very convention
12.Micro-computer controller,PID function,digitally display temperature(continuously display during test),accuracy 0.1℃,Pt100 temperature sensor.
II.Technical specifications
| 1 |
Applicable standards |
GB/T1884 ISO3675 ASTM D1298 |
| 2 |
Working unit |
double units |
| 3 |
Refrigeration method |
Air compressor |
| 4 |
Temperature controlling method |
Imported digital PID |
| 5 |
Temperature controlling accuracy |
±0.1℃ |
| 6 |
Working temperature |
10～100℃ |
| 7 |
Power supply |
AC220V/50Hz |
