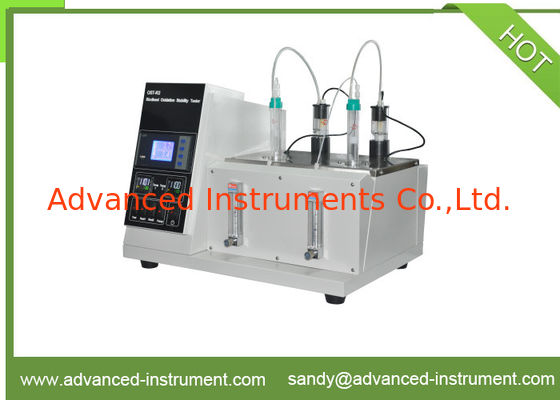

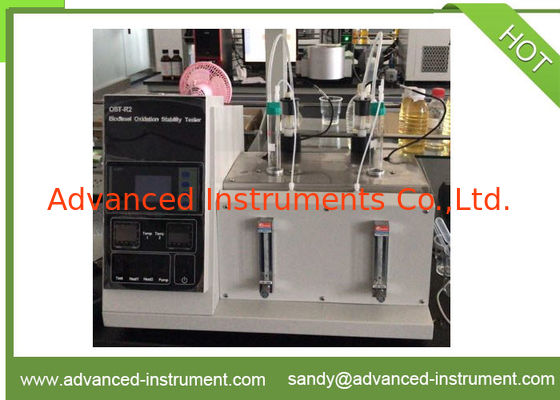

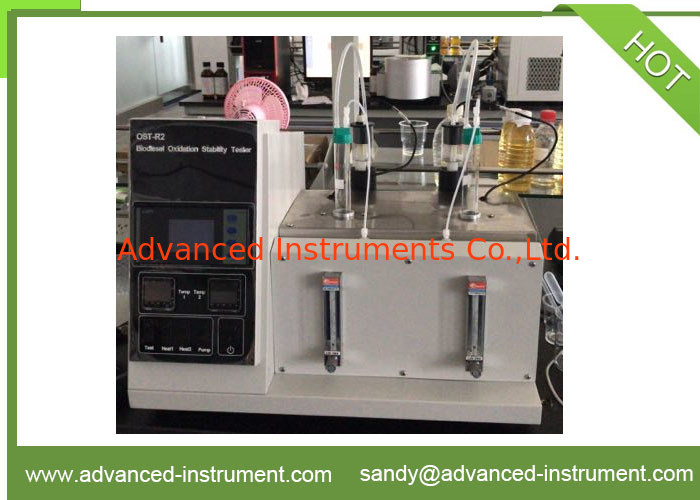

Biodiesel Oxidation Stability Tester by Rancimat Method
Introduction:
● Test standard:EN 14112 & EN 15751
●Temperature controlling:PID digital controller,temperature is controlled separately.
● Gas source:special membrane pump 10L/H
● Temperature controlling method:electrical heating rod
● Working temperature:ambient~150±0.1℃
● Test time:about 14 hours
● Power supply:AC220V±10% 50HZ
● Test unit:2 tubes tests separately,it’s convenient to test parallel samples
Features:
1.It’s designed according to EN14112 and suitable for measurement of oxidation stability of lubricating grease
2.It meet the requirements of EU and China standards.
3.Adopt imported PID temperature controller,the temperature is stabilized between
ambient~150℃,accuracy is ±0.1℃.
4.Imported heating band guarantees safety and environmental protection
5.Special membrane pump can control the flow rate correctly and steadily.
6.Particular air filtering system makes multi air paths smooth and good air gas source.
7.Conductivity meter measure data in real time,large LCD screen IPC automatically record,store data,input and process multi-channel data,display conductivity of lubricating grease during oxidation and induction period in real time.
8.Display method:curve and digital
9.Every test is stored in data base.All data related to curve and whole method can be called.Even after a long time,you can used previous measuring points for current test.
10.Result process:automatically measure,print,manually break curve
11.Each sample is controlled independently,and it can be set as per request automatically.
12.Two temperature control systems:110℃ and 140℃
Specifications:
| Test standard |
EN 14112 & EN 15751 |
| Test method |
Rancimat |
| Temperature range |
ambient~150℃ |
| Display |
LCD |
| Test units |
2 holes |
| Sample |
Biodiesel |
| Power supply |
AC220V±10%/50HZ |
